Interpreting the Raw EEG: Frontal Intermittent Rhythmic Delta Activity (FIRDA)
- Fred Shaffer
- Jul 10
- 12 min read
Updated: Aug 1
Frontal intermittent rhythmic delta activity (FIRDA) is not a diagnosis—it’s a clue. In the tradition of clinical neurology, where each sign is a cipher pointing toward a deeper disorder, FIRDA functions as an electrophysiologic signal that the brain’s integrative systems are under stress.
FIRDA is a distinct electroencephalographic pattern recognized by its frontal predominance, rhythmic delta frequency, and intermittent occurrence.
Though not specific to any single pathology, FIRDA carries significant clinical implications in adult populations and serves as a sensitive marker for subcortical or diffuse cerebral dysfunction.
It should always prompt further investigation and is rarely benign when identified in awake adult patients.
Morphological and Physiological Basis
From a neurophysiological perspective, FIRDA is characterized by sinusoidal delta waves, typically within the 1–3 Hz range, though some authors extend the upper limit to 4 Hz. These waveforms are often moderate to high in amplitude, tend to be stereotyped across bursts, and maintain a bilateral frontal distribution, frequently with slight asymmetry. Raw EEG with FIRDA © The Atlas of Adult Electroencephalography.
Raw EEG Analysis

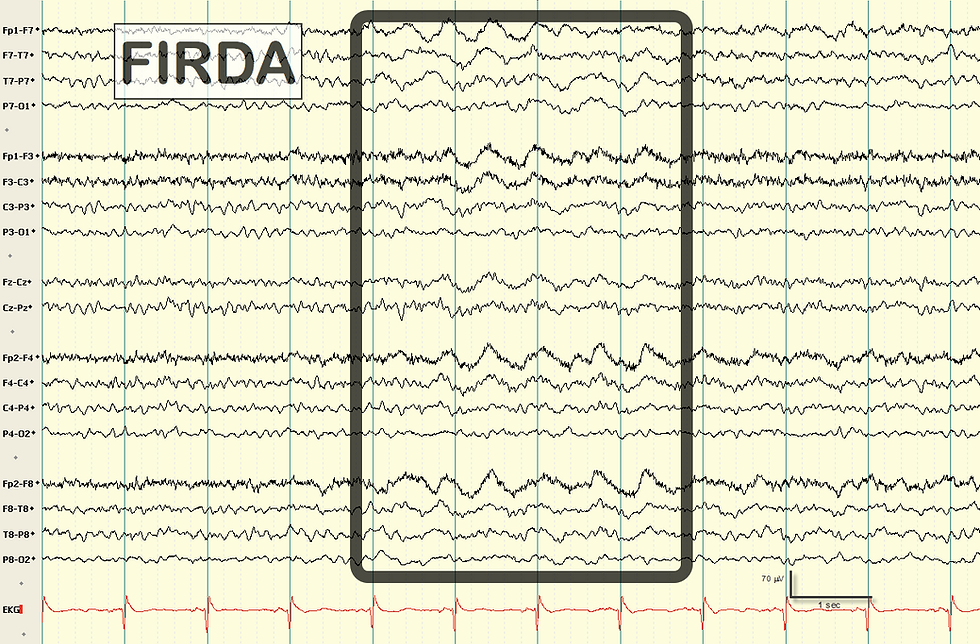

The EEG tracing above displays a classic example of Frontal Intermittent Rhythmic Delta Activity (FIRDA), as labeled in the upper left of the image. The pattern is most clearly observed in the frontal and frontopolar leads, particularly Fp1–F3, Fp2–F4, F3–C3, and F4–C4, where rhythmic delta frequency activity—approximately 2 Hz—is evident. The activity is bilateral, symmetric, and sinusoidal, exhibiting a waxing and waning amplitude characteristic of FIRDA. This rhythmic delta stands out against the otherwise faster and more variable background activity, further emphasizing its abnormality.
The delta bursts appear intermittent within the segment, lasting several seconds and embedded within a recording that otherwise shows a relatively low-amplitude, mixed-frequency background, suggesting that the patient may be awake or in a state of light drowsiness. There is no evidence of epileptiform activity such as spikes, sharp waves, or evolving discharges. Additionally, the FIRDA is not time-locked to the cardiac cycle, ruling out pulsatile artifact. The EKG trace at the bottom confirms a stable cardiac rhythm and provides a temporal reference for the EEG events.
Crucially, the morphology and distribution of the delta activity argue against ocular artifact. The rhythmicity, duration, and smooth sinusoidal pattern, along with the presence across multiple anterior leads without concurrent deflections in the EKG or EOG channels, make eye movement artifact unlikely. The field extends posteriorly into frontocentral derivations, which supports a cortical origin rather than contamination from myogenic or movement-based sources.
In a clinical context, this pattern strongly suggests subcortical or diffuse cerebral dysfunction, potentially due to metabolic encephalopathy, increased intracranial pressure, or deep midline structural involvement. FIRDA in this form should not be interpreted as a benign variant. It demands clinical correlation with the patient's mental status, metabolic parameters, and neuroimaging findings to identify a treatable cause of subcortical-cortical disconnection. The overall impression is of a pathologic, reactive delta pattern implicating midline structures, consistent with the typical electrophysiologic signature of FIRDA.
How FIRDA Typically Presents
FIRDA most commonly presents as rhythmic 1 to 3 Hz delta activity, occurring intermittently, bilaterally, and symmetrically over the frontal scalp regions. It exhibits a stereotyped, sinusoidal morphology and displays a key feature that distinguishes it from pathological slowing due to cortical lesions: it is reactive. FIRDA is suppressed by eye-opening, alerting, or other arousing stimuli (Niedermeyer & da Silva, 2017). This reactivity implicates an intact, though dysfunctional, reticular activating system.
Morphologically, FIRDA consists of waxing and waning trains of rhythmic delta that persist for several seconds and recur intermittently during the recording. Importantly, these bursts typically suppress or disappear during periods of alerting, eye opening, or mental tasks, underscoring their reactivity. This feature distinguishes them from seizure activity or focal cortical slowing.
What Causes FIRDA?

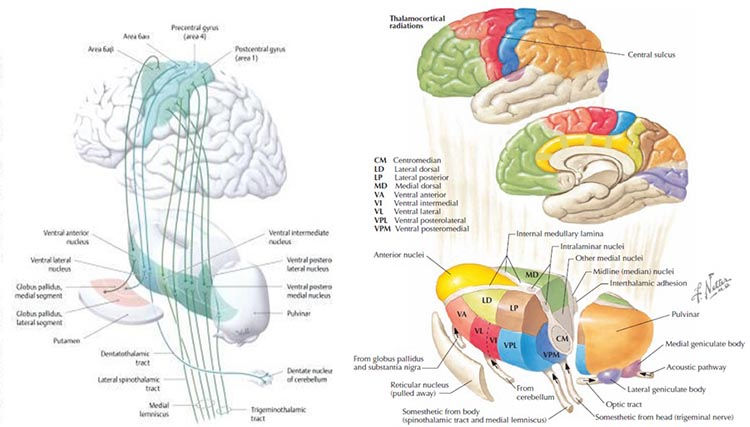

The neuroanatomical substrate of FIRDA primarily lies within the thalamocortical network. The thalamus plays a central role in synchronizing cortical rhythms, and any dysfunction affecting the thalamus or upper brainstem reticular activating system may disrupt this balance, resulting in rhythmic delta discharges projected to the frontal cortices. Thalamocortical graphic © Netter.
FIRDA is thus considered a sign of subcortical deafferentation or disconnection, rather than a purely cortical phenomenon. This functional disconnection can arise from a wide array of conditions, both structural and metabolic.
When FIRDA appears in the EEG, it should immediately prompt the clinician to ask: What is impairing subcortical-cortical connectivity? Where is the disturbance—structural, metabolic, or pressure-related? Is this a reversible process, or evidence of progressive injury?
FIRDA is not seen in the normal, alert adult brain. Its presence suggests that something is interfering with the thalamocortical relay, disrupting the synchronized activity between deep midline brain structures and the frontal cortices.
The Metabolic Encephalopathy Hypothesis
One of the first diagnostic considerations should be a systemic or metabolic encephalopathy. FIRDA is commonly seen in patients with hepatic failure, renal failure, sepsis, or profound electrolyte derangements. In these conditions, FIRDA represents a transient functional disconnection between subcortical activating systems and the cortex, often due to toxin-mediated depression of synaptic transmission.
The finding does not localize cortical injury, but rather indicates global dysfunction with prominent expression in the frontal networks. A clinician who sees a patient with FIRDA should consider ordering a comprehensive metabolic panel, including ammonia, renal function, serum osmolality, and toxicology screening, and should review medications for sedative burden, particularly in hospitalized patients.
The Intracranial Pressure Hypothesis
FIRDA also invites consideration of increased intracranial pressure (ICP). In patients with ventriculomegaly, mass lesions, or large infarcts, the emergence of FIRDA may signal midline brainstem or diencephalic compression. This is especially true in settings such as hydrocephalus, traumatic brain injury, or posterior fossa masses.
The clinician should interpret FIRDA not as an incidental EEG curiosity, but as a physiological alarm. This is particularly relevant in the intensive care unit, where patients may be unable to participate in examination due to sedation or intubation.
FIRDA can be a herald of impending herniation or global cerebral decompensation. In such cases, neuroimaging must be expedited.
A head CT or MRI with attention to midline shift, ventricular size, and cisternal patency is essential. If there is already concern for ICP, FIRDA supports the case for invasive monitoring or urgent surgical intervention.
The Structural Lesion Hypothesis
When FIRDA appears in a patient without a clear metabolic or pressure-related etiology, structural lesions involving the thalamus or brainstem should be considered.
Bilateral thalamic infarcts, particularly from artery of Percheron occlusion, can produce FIRDA with accompanying impaired consciousness and vertical gaze palsy.
Low-grade gliomas of the third ventricle or pineal region may similarly exert pressure on deep midline structures, generating this pattern. In such cases, FIRDA becomes an invitation to image the deep midline brain, especially when the clinical picture is unexplained drowsiness, behavioral change, or new-onset confusion without overt cortical signs.
FIRDA also appears transiently in postictal states, often following generalized seizures, where global cortical suppression may briefly uncouple thalamocortical drive. In this context, FIRDA should be monitored for resolution, which may correlate with clinical improvement.
What FIRDA is Not
Critically, FIRDA is not a seizure pattern. It lacks the evolving frequency, spatial spread, and paroxysmal onset that define ictal discharges. Nor is it a normal variant.
While rhythmic delta activity can be benign in children—particularly occipital intermittent rhythmic delta activity (OIRDA) in the occipital regions—in adults, frontal delta is not physiologic. FIRDA must also be distinguished from frontal eye movement artifacts. Slow vertical eye movements, particularly in drowsy patients, may mimic rhythmic delta over Fp1 and Fp2. Careful inspection of EOG channels and correlation with the patient’s state will clarify the source. FIRDA is also not the same as polymorphic delta activity, which is typically irregular, non-rhythmic, and often localizes to cortical pathology such as a tumor, infarct, or encephalitis (Ebersole et al., 2014).
FIRDA as a Temporal Marker
Another layer of FIRDA’s diagnostic utility lies in its temporality. When EEG is performed serially, FIRDA can serve as a marker of cerebral trajectory. For example, FIRDA that resolves after dialysis or lactulose treatment in hepatic encephalopathy correlates with clinical improvement. Conversely, the emergence or worsening of FIRDA in serial EEGs may signal progressive deterioration. FIRDA thus becomes a dynamic indicator—more than a static finding—allowing the clinician to track the course of diffuse cerebral illness even when bedside examination is limited.
Critical Information for Clinicians
We wish clinicians knew that FIRDA is not a benign curiosity, nor is it a pattern to be dismissed as nonspecific slowing. FIRDA is an active neurophysiologic clue—a marker that the brain’s integrative circuits, particularly those linking subcortical structures to the frontal cortex, are compromised. To ignore FIRDA is to ignore what may be the only early, noninvasive indicator of a reversible or evolving neurological process. It is a clinical sign encoded in electrical language.
First and foremost, FIRDA is a reactive and non-epileptiform rhythm. Its occurrence in awake adults is always abnormal and should be seen as a sign of subcortical or diencephalic dysfunction, often due to systemic causes or mass effect. It typically manifests as bilaterally synchronous, rhythmic 1–3 Hz delta waves, maximal in the frontal leads, and often attenuates with eye opening or alerting stimuli. This suppression with stimulation is diagnostically useful: it separates FIRDA from ictal rhythms and suggests that thalamocortical circuits remain partially intact, though under strain (Niedermeyer & da Silva, 2017).
FIRDA is often the brain’s nonverbal way of expressing distress from non-cortical pathology. This includes metabolic encephalopathies, but more critically, increased intracranial pressure, hydrocephalus, or deep midline lesions involving the thalami, third ventricle, or upper brainstem. In comatose or obtunded patients, FIRDA may be the earliest electrophysiological evidence of impending brainstem compression or a shift phenomenon. In such scenarios, failing to act on FIRDA may mean missing a window to prevent herniation or irreversible injury. If FIRDA is detected on EEG, clinicians should immediately ask: Could this be hydrocephalus? A posterior fossa mass? Bilateral thalamic infarction? Raised ICP?
FIRDA does not indicate seizures and does not require antiepileptic therapy. Misinterpreting FIRDA as an ictal pattern may lead to inappropriate escalation of anticonvulsants, unnecessary sedation, and a clinical delay in addressing the true cause. FIRDA is rhythmic but not epileptiform, lacks evolution or sharp morphology, and does not benefit from anticonvulsant loading. If there is no accompanying clinical event or epileptiform discharge, FIRDA alone is not a reason to prescribe anti-seizure medications (Ebersole et al., 2014).
FIRDA also demands clinical and diagnostic integration. Too often, its identification is documented in an EEG report and then overlooked in clinical management. Physicians should correlate FIRDA with neurologic examination, neuroimaging findings, and systemic data. If a patient with FIRDA is encephalopathic with no clear cortical lesion on CT or MRI, a subcortical process should be considered. This includes evaluating for bilateral thalamic infarcts, venous sinus thrombosis, obstructive hydrocephalus, or deep-seated infections or masses. FIRDA is often the only clue that these deeper regions are involved, especially when the cortex appears preserved.
We also wish clinicians recognized that FIRDA is often transient and reversible, particularly in the context of metabolic or pressure-related causes. FIRDA may resolve following dialysis, lumbar puncture, ventriculostomy, or treatment of the underlying systemic illness. Its disappearance on serial EEG may parallel clinical improvement and should be viewed as a functional biomarker—not of disease, but of recovery.
Equally important, FIRDA should not be misinterpreted as merely an age-related variant. While frontal delta activity can appear during drowsiness in elderly individuals, true FIRDA in awake adults is never normal. If it is present, it warrants investigation—not reassurance. The older adult with FIRDA on EEG may be harboring a slowly progressing process, such as normal pressure hydrocephalus or a midline tumor, and failure to recognize the significance of this pattern may delay diagnosis for weeks or months.
Finally, we wish clinicians appreciated FIRDA as a neurophysiological red flag—not a definitive diagnosis, but a call to action. FIRDA demands that the treating team take a deeper look. It asks the question: What is disrupting the brain’s integrative centers? And it answers, silently but consistently: Not everything is cortical.
The Clinician Detective's Challenge
FIRDA compels clinicians to act—not to treat the EEG pattern itself, but to recognize it as the electrophysiologic footprint of something treatable, and often urgent. It is not an endpoint but a starting point, an electroencephalographic fingerprint of a vulnerable brain.
Key Takeaways
FIRDA (Frontal Intermittent Rhythmic Delta Activity) is an abnormal EEG pattern characterized by rhythmic delta waves over the frontal regions, typically occurring in adults.
It is strongly associated with diffuse cerebral dysfunction, particularly involving subcortical structures such as the thalamus or brainstem. It is commonly seen in metabolic encephalopathies or states of increased intracranial pressure.
FIRDA presents as bilateral, rhythmic delta activity (1–3 Hz), maximal over frontal electrodes, that suppresses with eye opening or alerting stimuli.
It must be differentiated from eye movement artifacts, polymorphic delta activity, and benign pediatric patterns, such as OIRDA, to avoid misinterpretation.
The presence of FIRDA necessitates clinical correlation and further investigation, as it is rarely a benign finding and may indicate reversible or emergent neurological conditions.
Glossary
amplitude: the vertical height of an EEG waveform, typically measured in microvolts (µV); reflects the voltage difference between electrodes. Higher amplitudes often indicate synchronized neuronal activity, such as in rhythmic delta patterns.
artifact: any signal recorded on EEG that originates from non-cerebral sources, such as eye movements, muscle activity, or electrical interference. Differentiating artifacts from true cerebral activity is critical in EEG interpretation.
bilateral: Refers to waveforms or activity that appears on both sides of the scalp, typically in a symmetric distribution. FIRDA and OIRDA are often bilateral.
cisternal patency: openness of the entrance to and exit from a structure that holds cerebrospinal fluid along its path of flow between ventricles.
cortical suppression: a reduction in normal cortical electrical activity, often seen in diffuse encephalopathies. May manifest as slowing or attenuation of background rhythms on EEG.
delta activity: slow brain waves in the 0.5–4 Hz frequency range. While normal during sleep, delta waves are abnormal when seen in awake adults and may indicate cerebral dysfunction.
diencephalon: a midline brain structure encompassing the thalamus and hypothalamus. Dysfunction here is often implicated in FIRDA.
EOG (Electrooculography): a technique that records eye movements using surface electrodes; essential for distinguishing eye movement artifacts from cerebral rhythms in EEG studies.
epileptiform: describes waveforms that are suggestive of seizure activity, including spikes, sharp waves, and spike-and-wave complexes. FIRDA is not considered epileptiform.
eye movement artifact: slow or rapid potentials generated by ocular motion, commonly seen in frontal electrodes. Can mimic delta activity and must be differentiated from true cerebral patterns.
frontal intermittent rhythmic delta activity (FIRDA): an abnormal EEG pattern consisting of rhythmic 1–3 Hz delta waves over the frontal regions. It is associated with subcortical dysfunction, often due to metabolic encephalopathy or increased intracranial pressure.
generalized slowing: EEG background activity that is diffusely slowed across all regions, typically indicating diffuse cerebral dysfunction or encephalopathy.
hydrocephalus: a condition involving excess cerebrospinal fluid accumulation in the brain’s ventricles, often leading to increased intracranial pressure and EEG changes such as FIRDA.
intracranial pressure (IC): the pressure inside the skull exerted by brain tissue, cerebrospinal fluid, and blood. Elevated ICP can manifest as FIRDA on the EEG.
ictal: pertaining to the active phase of a seizure. Ictal EEG patterns show evolving discharges, in contrast to the static, reactive nature of FIRDA.
intermittent: describes activity that appears sporadically rather than continuously. Both FIRDA and OIRDA are intermittent patterns.
metabolic encephalopathy: brain dysfunction resulting from systemic metabolic derangement, such as hepatic or renal failure. Commonly associated with generalized slowing and FIRDA on EEG.
occipital intermittent rhythmic delta activity (OIRDA): a rhythmic, symmetric, and reactive delta activity localized to occipital regions, commonly seen in children. Usually benign but may be associated with epilepsy.
Percheron occlusion: an uncommon but clinically significant type of stroke involving the artery of Percheron, a rare anatomical variant in the cerebral circulation.
polymorphic delta activity: irregular, non-rhythmic slow waves, often focal or lateralized. Commonly associated with structural brain lesions, in contrast to rhythmic patterns like FIRDA.
posterior fossa: the backmost depression inside the skull that supports structures including the cerebellum, fourth ventricle, and brainstem.
reactivity: the change in EEG patterns in response to external stimuli, such as eye opening or alerting. FIRDA and OIRDA typically suppress with eye opening.
rhythmicity: a property of EEG waveforms that appears with regular frequency and morphology. Key in distinguishing rhythmic delta activity from polymorphic or artifact-related slowing.
subcortical structures: brain regions beneath the cerebral cortex, such as the thalamus and brainstem. Dysfunction here often results in FIRDA due to disrupted thalamocortical pathways.
thalamocortical network: the functional circuit between the thalamus and cerebral cortex responsible for maintaining consciousness and rhythm generation. Impairment is often implicated in FIRDA.
waveform: the visual representation of electrical activity over time on EEG. Includes characteristics like frequency, amplitude, and morphology.
References
Ebersole, J. S., Husain, A. M., & Nordli, D. R. (2014). Current practice of clinical electroencephalography (4th ed.). Wolters Kluwer Health.
Klass, D. W., & Westmoreland, B. F. (1985). Electroencephalography of diffuse encephalopathies. Journal of Clinical Neurophysiology, 2(1), 1–24. https://doi.org/10.1097/00004691-198501000-00001
Niedermeyer, E., & da Silva, F. L. (2017). Electroencephalography: Basic principles, clinical applications, and related fields (7th ed.). Oxford University Press.
Panayiotopoulos, C. P. (2007). The epilepsies: Seizures, syndromes and management. Bladon Medical Publishing. https://doi.org/10.1007/978-1-84628-644-5
Schomer, D. L., & Lopes da Silva, F. H. (2017). Niedermeyer's electroencephalography: Basic principles, clinical applications, and related fields (7th ed.). Oxford University Press.
